Forecasting Hurricane Trajectories with State Space Models#
Introduction#
In this case study we are going to forecast the paths of hurricanes by applying several State Space Models (SSM). We will begin with a simple two-dimensional constant acceleration tracking model, where we only have one parameter to estimate. Subsequently, we will progressively add complexity and parameters as we develop up our model.
As a brief introduction to SSMs, the general idea is that we define our system using two equations.
The state equation and the observation equation.
The process/state covariance is given by \(\epsilon_{t} \sim N(0, Q_{t})\) where \(Q_{t}\) is the process/state innovations and the observation/measurement covariance is given by \(\eta_{t} \sim N(0, H_{t})\) where \(H_{t}\) describes the uncertainty in the measurement device or measurement procedure.
We have the following matrices:
State Equation variables |
Definition |
|---|---|
\(T_{t}\) |
The state transition matrix at time \(t\) defines the kinematics of the process generating the series. |
\(x_{t}\) |
The state vector at time \(t\) describes the current state of the system. |
\(c_{t}\) |
Intercept vector at time \(t\) can include covariates/control/exogenous variables that are deterministically measured. |
\(R_{t}\) |
Selection matrix at time \(t\) selects which process innovations are allowed to affect the next state. |
\(\epsilon_{t}\) |
State/Process innovations at time \(t\) defines the shocks influencing the changes in the state matrix. |
Observation Equation variables |
Definition |
|---|---|
\(Z_{t}\) |
The design matrix at time \(t\) defines which states directly influence the observed variables. |
\(x_{t}\) |
The state vector at time \(t\) describes the current state of the system. |
\(d_{t}\) |
Intercept vector at time \(t\) can include covariates/control/exogenous variables that are deterministically measured. |
\(\eta_{t}\) |
observation/measurement error at time \(t\) defines the uncertainty in the observation. |
Estimation occurs in an iterative fashion (after an initialization step). In which the following steps are repeated:
Predict the next state vector \(x_{t+1|t}\) and the next state/process covariance matrix \(P_{t+1|t}\)
Compute the Kalman gain
Estimate the current state vector and the current state/process covariance matrix
Where \(P_{t}\) is the uncertainty in the state predictions at time \(t\).
The general idea is that we make predictions based on our current state vector and state/process covariance (uncertainty) then we correct these predictions once we have our observations.
The following equations define the process:
Description |
Equation |
|---|---|
Predict the next state vector |
\(\hat{x}_{t+1|t} = T_{t}\hat{x}_{t|t}\) |
Predict the next state/process covariance |
\(P_{t+1|t} = T_{t}P_{t+1|t}T_{t}^{T} + Q\) |
Compute Kalman Gain |
\(K_{t} = P_{t|t-1}Z^{T}(ZP_{t|t-1}Z^{T} + H_{t})^{-1}\) |
Estimate current state vector |
\(\hat{x}_{t|t} = \hat{x}_{t|t-1} + K_{t}(y_{t} - Z\hat{x}_{t|t-1})\) |
Estimate current state/process covariance |
\(P_{t|t} = (I - K_{t}Z_{t})P_{t|t-1}(I - K_{t}Z_{t})^{T} + K_{t}H_{t}K_{t}^{T}\) |
Note
We wrote the equation for \(P_{t\|t}\) above using Joseph form, which is more numerically stable but also wordier. In different texts you may encounter this equation written in “standard” form.
Imports#
Attention
This notebook uses libraries that are not PyMC dependencies and therefore need to be installed specifically to run this notebook. Open the dropdown below for extra guidance.
Extra dependencies install instructions
In order to run this notebook (either locally or on binder) you won’t only need a working PyMC installation with all optional dependencies, but also to install some extra dependencies. For advise on installing PyMC itself, please refer to Installation
You can install these dependencies with your preferred package manager, we provide as an example the pip and conda commands below.
$ pip install patsy polars plotly pymc-extras
Note that if you want (or need) to install the packages from inside the notebook instead of the command line, you can install the packages by running a variation of the pip command:
import sys
!{sys.executable} -m pip install patsy polars plotly pymc-extras
You should not run !pip install as it might install the package in a different
environment and not be available from the Jupyter notebook even if installed.
Another alternative is using conda instead:
$ conda install patsy polars plotly pymc-extras
when installing scientific python packages with conda, we recommend using conda forge
# Required Extra Dependencies
import plotly.graph_objects as go
import plotly.io as pio
import polars as pl
from patsy import dmatrix
from pymc_extras.statespace.core.statespace import PyMCStateSpace
from pymc_extras.statespace.models.utilities import make_default_coords
from pymc_extras.statespace.utils.constants import (
ALL_STATE_AUX_DIM,
ALL_STATE_DIM,
TIME_DIM,
)
# make all plotly figures static
pio.renderers.default = "svg"
Helper Functions#
def ellipse_covariance(covariance: np.ndarray) -> np.ndarray:
"""
Generates a 95% CI ellipse via a chi-square multivariate normal approximation.
Parameters
----------
covariance : ndarray
The estimated covariance matrix
Returns
-------
ndarray
matrix of ellipse points
"""
evals, evects = np.linalg.eig(covariance)
largest_evect = evects[np.argmax(evals)]
largest_eval = np.max(evals)
smallest_eval = np.min(evals)
angle = np.arctan2(largest_evect[1], largest_evect[0])
if angle < 0:
angle = angle + 2 * np.pi
chisquare_val = 2.4477 # 95% CI MVN
theta_grid = np.linspace(0, 2 * np.pi)
phi = angle
a = chisquare_val * np.sqrt(largest_eval) # half-major axis scaled by k corresponding to 95% CI
b = chisquare_val * np.sqrt(smallest_eval) # half-minor axis scaled by k
ellipse_x_r = a * np.cos(theta_grid)
ellipse_y_r = b * np.sin(theta_grid)
R = np.array([[np.cos(phi), np.sin(phi)], [-np.sin(phi), np.cos(phi)]])
return np.array([ellipse_x_r, ellipse_y_r]).T @ R
def plot_hurricane_path(
data: pl.DataFrame,
posterior_mean: np.ndarray,
predicted_covariance: np.ndarray,
uncertainty_index: int = 3,
) -> go.Figure:
"""
Plots actual vs predicted Hurricane path.
Parameters
----------
data : DataFrame
dataframe containing the actual values
posterior_mean : ndarray
The posterior mean of the estimated distributions
predicted_covariance : ndarray
The predicted covariance matrices at each time point
uncertainty_index : int
When to start drawing the uncertainty on the map (due to huge uncertainty in the begining of the process)
Returns
-------
Figure
Plotly Hurricane Figure
"""
fig = go.Figure()
for i in range(predicted_covariance.shape[0]):
if uncertainty_index and (
i < uncertainty_index
): # The uncertainty can be quite large depending on how you initialze P0
continue
r_ellipse = ellipse_covariance(predicted_covariance[i, :2, :2])
means = posterior_mean[i]
fig.add_trace(
go.Scattermap(
lon=r_ellipse[:, 0].astype(float) + means[0].values,
lat=r_ellipse[:, 1].astype(float) + means[1].values,
mode="lines",
fill="toself",
showlegend=True if i == uncertainty_index else False,
legendgroup="HDI",
hoverinfo="skip",
marker_color="blue",
name="95% CI",
)
)
fig.add_traces(
[
go.Scattermap(
lon=posterior_mean[:, 0],
lat=posterior_mean[:, 1],
name="predictions",
mode="lines+markers",
line=dict(color="lightblue"),
hovertemplate=[
f"""<b>Period:</b> {i+1}<br><b>Longitude:</b> {posterior[0]:.1f}<br><b>Latitude:</b> {posterior[1]:.1f}<extra></extra>
"""
for i, posterior in enumerate(posterior_mean)
],
),
go.Scattermap(
lon=data["longitude"],
lat=data["latitude"],
name="actuals",
mode="lines+markers",
line=dict(color="black"),
hovertemplate=[
f"""<b>Period:</b> {row['discrete_time']}<br><b>Longitude:</b> {row['longitude']:.1f}<br><b>Latitude:</b> {row['latitude']:.1f}<extra></extra>
"""
for row in data.iter_rows(named=True)
],
),
]
)
fig.update_layout(
margin=dict(b=0, t=0, l=0, r=0),
map={
"bearing": 0,
"center": go.layout.map.Center(
lat=data["latitude"].mean() + 15.0, lon=data["longitude"].mean()
),
"pitch": 0,
"zoom": 2.0,
},
)
return fig
def generate_period_forecasts(
ssm_model: PyMCStateSpace,
inference_data: az.InferenceData,
data: pl.DataFrame,
exogenous_data_name: str | None = None,
padded_exogenous_data: pl.DataFrame | np.ndarray | None = None,
periods: int = 4,
) -> tuple[np.ndarray, np.ndarray]:
"""
Produces an n-period ahead forecast.
Parameters
----------
ssm_model : PyMCStateSpace
The statespace model you want to forecast with
inference_data : InferenceData
The fitted model trace
data : DataFrame
The actual data used for fitting
exogenous_data_name : str | None
The key/name you used to define your exogenous data
padded_exogenous_data : DataFrame | ndarray | None
The exogenous data padded for the number of forecasts you expect to make
periods : int
The number of periods to forecast
Returns
-------
f_mean : ndarray
posterior predictive mean of the forecasts
cppc_vcov : ndarray
posterior predictive variance-covariance matrix
"""
n_t = inference_data.constant_data.time.shape[0]
time_steps = np.arange(0, n_t, periods)
period_forecasts = []
for start in time_steps:
scenario = None
if padded_exogenous_data is not None:
if isinstance(padded_exogenous_data, pl.DataFrame):
exog_slice = padded_exogenous_data.slice(start, periods).to_numpy()
else:
exog_slice = padded_exogenous_data[start : start + periods]
scenario = {exogenous_data_name: exog_slice}
f = ssm_model.forecast(
inference_data,
start=start,
periods=periods,
filter_output="smoothed",
progressbar=False,
scenario=scenario,
)
period_forecasts.append(f)
# Combine forecasts
forecasts = xr.combine_by_coords(period_forecasts, combine_attrs="drop_conflicts")
# Only look at in-sample forecasts
forecasts = forecasts.sel(time=range(1, len(data)))
f_mean = forecasts["forecast_observed"].mean(("chain", "draw"))
longitude_cppc = az.extract(forecasts["forecast_observed"].sel(observed_state="x"))
latitude_cppc = az.extract(forecasts["forecast_observed"].sel(observed_state="y"))
cppc_var = forecasts["forecast_observed"].var(("chain", "draw"))
cppc_covs = xr.cov(
latitude_cppc["forecast_observed"], longitude_cppc["forecast_observed"], dim="sample"
)
covs_list = []
for i in range(cppc_covs.shape[0]):
covs_list.append(
np.array(
[
[
[cppc_var[i].values[0], cppc_covs[i].values.item()],
[cppc_covs[i].values.item(), cppc_var[i].values[1]],
]
]
)
)
cppc_vcov = np.concatenate(covs_list, axis=0)
return f_mean, cppc_vcov
def evaluate_haversine(
actuals: np.ndarray, predictions: np.ndarray
) -> tuple[np.ndarray, np.ndarray, np.ndarray]:
"""
Calculate the distance between two cartesian points using the Haversine formula.
Parameters
-----------
actuals : ndarray
Longitude and Latitude points of the actual hurricane path
predictions : ndarray
Longitude and Latitude points of the predicted hurricane path
Returns
--------
errors : ndarray
Distance between actual and predicted points in miles
cumulative_errors : ndarray
Cumulative mean of the errors
mean_error : ndarray
Mean of the errors
"""
R = 3958.8 # Radius of our planet in miles
actuals_radians = np.radians(actuals)
predictions_radians = np.radians(predictions)
differences = actuals_radians - predictions_radians
a = (
np.sin(differences[:, 1] / 2) ** 2
+ np.cos(actuals_radians[:, 1])
* np.cos(predictions_radians[:, 1])
* np.sin(differences[:, 0] / 2) ** 2
)
c = 2 * np.arcsin(np.sqrt(a))
errors = R * c
cumulative_errors = np.cumsum(errors) / (np.arange(len(errors)) + 1)
mean_error = np.mean(errors)
return errors, cumulative_errors, mean_error
def plot_model_evaluations(
errors: np.ndarray,
cumulative_errors: np.ndarray,
mean_error: np.ndarray | float,
main_title: str,
) -> go.Figure:
"""
Plots model errors.
Parameters
----------
errors : ndarray
The distances between the predicted and forecasted points
cumulative_errors : ndarray
The cumulative mean of the errors
mean_error : ndarray | float
The overall mean error of the errors
Returns
-------
Figure
Plotly Figure
"""
fig = go.Figure()
fig.add_traces(
[
go.Scatter(
x=np.arange(len(errors)) + 1,
y=errors,
mode="markers+lines",
name="Distance from Actual",
hovertemplate="<b>Period</b>: %{x}<br><b>Miles Away</b>: %{y}",
),
go.Scatter(
x=np.arange(len(cumulative_errors)) + 1,
y=cumulative_errors,
name="Cumulative Average Error",
hovertemplate="<b>Period</b>: %{x}<br><b>Miles Away</b>: %{y}",
),
]
)
fig.add_shape(
type="line",
y0=mean_error,
y1=mean_error,
x0=0,
x1=errors.shape[0],
line_dash="dash",
line_color="black",
name="Overall Mean Error",
label=dict(text=f"Mean: {mean_error:.2f}", textposition="start"),
showlegend=True,
)
fig.update_layout(
title=f"{main_title} Model Evaluation",
xaxis=dict(title="Time Period"),
yaxis=dict(title="Miles Away from Actual"),
)
return fig
Load and Process the Dataset#
The data comes from the National Oceanic and Atmospheric Administration (NOAA) and is stored in an odd format (likely to save space). We need to wrangle it before we can proceed.
parsed_data = list()
try:
with open("../data/hurdat2-1851-2023-051124.txt") as f:
lines = f.readlines()
for line in lines:
commas = re.findall(",", line)
if len(commas) < 4:
hsep = line.split(",")
storm_id = hsep[0]
storm_name = hsep[1].strip()
else:
dsep = line.split(", ")
year = dsep[0][:4]
month = dsep[0][4:6]
day = dsep[0][6:8]
hours = dsep[1][:2]
minutes = dsep[1][-2:]
record_identifier = dsep[2]
latitude = dsep[4]
longitude = dsep[5]
max_wind = dsep[6]
min_pressure = dsep[7]
parsed_data.append(
[
storm_id,
storm_name,
year,
month,
day,
hours,
minutes,
record_identifier,
latitude,
longitude,
max_wind,
min_pressure,
]
)
except FileNotFoundError:
stream = pm.get_data("hurdat2-1851-2023-051124.txt")
lines = stream.readlines()
for line in lines:
commas = re.findall(",", line)
if len(commas) < 4:
hsep = line.split(",")
storm_id = hsep[0]
storm_name = hsep[1].strip()
else:
dsep = line.split(", ")
year = dsep[0][:4]
month = dsep[0][4:6]
day = dsep[0][6:8]
hours = dsep[1][:2]
minutes = dsep[1][-2:]
record_identifier = dsep[2]
latitude = dsep[4]
longitude = dsep[5]
max_wind = dsep[6]
min_pressure = dsep[7]
parsed_data.append(
[
storm_id,
storm_name,
year,
month,
day,
hours,
minutes,
record_identifier,
latitude,
longitude,
max_wind,
min_pressure,
]
)
df = pl.DataFrame(
parsed_data,
orient="row",
schema={
"storm_id": pl.String,
"storm_name": pl.String,
"year": pl.String,
"month": pl.String,
"day": pl.String,
"hour": pl.String,
"minute": pl.String,
"record_identifier": pl.String,
"latitude": pl.String,
"longitude": pl.String,
"max_wind": pl.String,
"min_pressure": pl.String,
},
)
df_clean = (
df.with_columns(
pl.concat_str( # combine columns to generate a datetime string field
"year", "month", "day", "hour", "minute"
).alias("datetime")
)
.with_columns( # Cast fields to appropriate data types
pl.col("datetime")
.str.strptime(dtype=pl.Datetime, format="%Y%m%d%H%M")
.dt.replace_time_zone("UTC")
.name.keep(),
pl.col("latitude").str.extract(r"(\d\d?.\d)").cast(pl.Float32).name.keep(),
(pl.col("longitude").str.extract(r"(\d\d?.\d)").cast(pl.Float32) * -1).name.keep(),
pl.col("max_wind").str.strip_chars().cast(pl.Float32).name.keep(),
pl.col("min_pressure").str.strip_chars().cast(pl.Float32).name.keep(),
)
.drop("year", "month", "day", "hour", "minute") # Drop redundant fields
.filter(pl.col("storm_name") != "UNNAMED") # remove unnamed hurricanes
.with_columns(
category=( # Create hurricane intensity category level
pl.when(pl.col("max_wind") > 155)
.then(pl.lit(5.0))
.when(pl.col("max_wind").is_between(131, 155))
.then(pl.lit(4.0))
.when(pl.col("max_wind").is_between(111, 130))
.then(pl.lit(3.0))
.when(pl.col("max_wind").is_between(96, 110))
.then(pl.lit(2.0))
.when(pl.col("max_wind").is_between(74, 95))
.then(pl.lit(1.0))
.otherwise(pl.lit(0.0))
)
)
)
df_clean.head()
| storm_id | storm_name | record_identifier | latitude | longitude | max_wind | min_pressure | datetime | category |
|---|---|---|---|---|---|---|---|---|
| str | str | str | f32 | f32 | f32 | f32 | datetime[μs, UTC] | f64 |
| "AL011950" | "ABLE" | " " | 17.1 | -55.5 | 35.0 | -999.0 | 1950-08-12 00:00:00 UTC | 0.0 |
| "AL011950" | "ABLE" | " " | 17.700001 | -56.299999 | 40.0 | -999.0 | 1950-08-12 06:00:00 UTC | 0.0 |
| "AL011950" | "ABLE" | " " | 18.200001 | -57.400002 | 45.0 | -999.0 | 1950-08-12 12:00:00 UTC | 0.0 |
| "AL011950" | "ABLE" | " " | 19.0 | -58.599998 | 50.0 | -999.0 | 1950-08-12 18:00:00 UTC | 0.0 |
| "AL011950" | "ABLE" | " " | 20.0 | -60.0 | 50.0 | -999.0 | 1950-08-13 00:00:00 UTC | 0.0 |
Generate visualizations#
Hurricane Originations#
Let’s plot the origination points of the hurricanes in our dataset. There are a few different origination definitions when looking at the tropical cyclones within the HURDAT dataset:
A tropical depression when the maximum sustained surface wind is \(\le\) 33.89 knots
A tropical cyclone when the maximum sustained surface wind is \(\gt\) 33.89 knots
A Hurricane when the maximum sustained surface wind is \(\ge\) 64.30 knots
We are going to define the first instance of tracking data per hurricane as our origin. These are important because hurricanes curve differently, due to the coriolis effect, depending on where they are located. For example, hurricanes in the northern hemisphere curve to the right. Whereas, in the southern hemisphere they curve to the left. In addition, the origination point influences the strength of the hurricane and its likelihood of making landfall. For example, Hurricanes that originate in the Gulf of Mexico have little time to gather energy but are surrounded by land making it more likely for landfall.
origin_plot = df_clean.select(
pl.all().first().over("storm_id"),
pl.col("category").max().over("storm_id").alias("max_category"),
).unique()
fig = go.Figure()
for cat in origin_plot["max_category"].unique():
fig.add_trace(
go.Scattermap(
lat=origin_plot.filter(pl.col("max_category") == cat)["latitude"],
lon=origin_plot.filter(pl.col("max_category") == cat)["longitude"],
mode="markers",
hovertemplate=[
f"""<b>Storm Name:</b> {row['storm_name']}<br><b>Datetime:</b> {row['datetime']}<br><b>Longitude:</b> {row['longitude']:.1f}<br><b>Latitude:</b> {row['latitude']:.1f}<br><b>Maximum Wind Speed:</b> {row['max_wind']:.0f}<br><b>Minimum Pressure:</b> {row['min_pressure']:.0f}<br><b>Record Identifier:</b> {row['record_identifier']}<br><b>Category:</b> {row['max_category']:.0f}<extra></extra>
"""
for row in origin_plot.filter(pl.col("max_category") == cat).iter_rows(named=True)
],
marker=go.scattermap.Marker(size=14, opacity=0.5),
name=f"category {int(cat)}",
)
)
fig.update_layout(
margin=dict(b=0, t=0, l=0, r=0),
map={
"bearing": 0,
"center": go.layout.map.Center(
lat=origin_plot["latitude"].mean(), lon=origin_plot["longitude"].mean()
),
"pitch": 0,
"zoom": 2.5,
},
)
fig.show(width=1000, config={"displayModeBar": False})
Hurricane Fiona’s Path#
From here on out our task is to forecast the trajectory of Hurricane Fiona. Let’s plot the path it took. We mark the origination point in blue and the last observed location of Fiona in red. We see that Fiona initially travels westward and curves to the right making its way northward. This trajectory is typical for Hurricanes that originate in the Northern Hemisphere of the Atlantic Ocean.
plot_df = (
df_clean.filter(pl.col("storm_id") == "AL072022")
.with_row_index()
.with_columns(
color=(
pl.when(pl.col("index") == pl.col("index").first())
.then(pl.lit("blue"))
.when(pl.col("index") == pl.col("index").last())
.then(pl.lit("red"))
.otherwise(pl.lit("green"))
)
)
)
fig = go.Figure(
go.Scattermap(
lat=plot_df["latitude"],
lon=plot_df["longitude"],
mode="markers+lines",
hovertemplate=[
f"""<b>Datetime:</b> {row['datetime']}<br><b>Longitude:</b> {row['longitude']:.1f}<br><b>Latitude:</b> {row['latitude']:.1f}<br><b>Maximum Wind Speed:</b> {row['max_wind']:.0f}<br><b>Minimum Pressure:</b> {row['min_pressure']:.0f}<br><b>Record Identifier:</b> {row['record_identifier']}<extra></extra>
"""
for row in plot_df.iter_rows(named=True)
],
marker=go.scattermap.Marker(size=14, color=plot_df["color"]),
)
)
fig.update_layout(
margin=dict(b=0, t=0, l=0, r=0),
map={
"bearing": 0,
"center": go.layout.map.Center(
lat=plot_df["latitude"].mean() + 15.0, lon=plot_df["longitude"].mean()
),
"pitch": 0,
"zoom": 1.5,
},
)
fig.show(width=1000, config={"displayModeBar": False})
Tracking Hurricane Fiona using a State Space Model#
The simplest state space model for tracking an object in 2-dimensional space is one in which we define the kinematics using Newtonian equations of motion. In this example we assume constant acceleration but place a stochastic innovation \(\sigma_{a}^{2}\) to account for unmodeled angular acceleration. Furthermore, we fix the observation/measurement noise, \(H\), to a small value, reflecting our confidence in the collected data. We will also assume that the states in the x/longitude direction do not affect the states in the y/latitude direction. This means knowing the position/velocity/acceleration in x/longitude gives us no information on the position/velocity/acceleration in y/latitude
Let us begin by defining our matrices/vectors.
As a reminder the observation equation and the state equation define our linear system.
In this case we are assuming there is no state or observation intercepts (\(c_{t} = 0\), \(d_{t} = 0\)). I will also drop the \(t\) subscript over matrices that are fixed (do not change over time).
Our states are the following components derived from the Newtonian equations of motion.
In order for our system to evolve in accordance with Newtonian motion our transitioin matrix is defined as:
The following design matrix tells us that only the positions (\(longitude_{t}\) and \(latitude_{t}\)) are observed states
The selection matrix is defined as the identity allowing the process/state covariance to affect all of our states.
Where
In this example we fix our observation/measurement error to a small value (0.5) reflecting our confidence in the measurements. Here we are assuming that our measuring instrument is fairly accurate and that it may be off by \(\sqrt{0.5} \approx 0.7\) degrees.
and finally, the state/process covariance matrix that is derived from using Newtonian motion is as follows:
Let’s briefly go over how we came about our \(T\) and \(Q\) matrices.
The \(T\) transition matrix is built such that when we expand the observation model we end up with the Newtonian equations of motion. For example, if we expand the matrix vector multiplaction for the longitude (position) term we end up with:
This is the Newtonian motion equation of position. Where the new position is the old position plus the change in velocity plus the change in acceleration. The rest of the equations can be derived by completing all the entries of the matrix vector multiplication of the observation equation.
The process/state covariance matrix \(Q\) is just the variance (diagonals) covariance (off-diagonals) of the Newtonian equations. For example, the variance of the longitudinal position entry is:
Where in this case we assume the same stochastic innovations on the acceleration term in both dimensions. You can derive the rest of the entries in \(Q\) by taking the variance or covariance of the Newtonian equations.
Optional Material#
We can also derive the Newtonian equations of motion from a system of ordinary differntial equations (ODE)s. Here we have a system that consists of:
\(\dot{p}(t) = v(t)\)
\(\dot{v}(t) = a(t)\)
\(\dot{a}(t) = 0\)
our state vector (in one dimension)
and our ODE system becomes
Now we integrate our system over \(\Delta{t}\) and we have
assuming that the change in time is small and that the change in velocity is negligible we can approximate the integrals using the forward Euler method and get
integrating the rest of our system equations using the same methodology we find that
We can now express our system of equations over a time interval \(\Delta{t}\) as
Which when you write out the matrix vector multiplications will yield the Newtonian equations of motion.
# Pull out Hurricane Fiona from the larger dataset
fiona_df = df_clean.filter(pl.col("storm_id") == "AL072022").with_row_index(
name="discrete_time", offset=1
)
We are going to use the PyMC StateSpace module in the pymc-extras package to code up the state space model we defined above. In This model we are going to set up 3 variables:
\(x_{0|0}\) The initial state vector (for initializing the estimation steps described earlier)
\(P_{0|0}\) The initial state/process covariance matrix (again for initializing the recursive estimator)
\(\sigma_{a}^{2}\) The acceleration innovations (this is useful for when the acceleration is not actually constant as we have assumed in the kinematics of the model)
We will set deterministic values for both the initial values \(x_{0}\) and \(P_{0}\). Therefore, in this simplest model, we will only estimate one parameter \(\sigma_{a}^{2}\)
class NewtonianSSM(PyMCStateSpace):
def __init__(self, mode=None):
k_states = 6 # number of states (x, y, vx, vy, ax, ay)
k_posdef = 6 # number of shocks (size of the process innovations covariance matrix Q)
k_endog = 2 # number of observed states (we only observe x and y)
mode = mode
super().__init__(k_endog=k_endog, k_states=k_states, k_posdef=k_posdef, mode=mode)
def make_symbolic_graph(self):
delta_t = 6.0 # The amount of time between observations 6 hours in our case
# these variables wil be estimated in our model
x0 = self.make_and_register_variable(
"x0", shape=(6,)
) # initial state vector (x, y, vx, vy, ax, ay)
P0 = self.make_and_register_variable(
"P0", shape=(6, 6)
) # initial process covariance matrix
acceleration_innovations = self.make_and_register_variable(
"acceleration_innovations", shape=(1,)
)
self.ssm["transition", :, :] = np.array(
[
[1, 0, delta_t, 0, (delta_t**2) / 2, 0],
[0, 1, 0, delta_t, 0, (delta_t**2) / 2],
[0, 0, 1, 0, delta_t, 0],
[0, 0, 0, 1, 0, delta_t],
[0, 0, 0, 0, 1, 0],
[0, 0, 0, 0, 0, 1],
]
)
self.ssm["selection", :, :] = np.eye(self.k_posdef)
self.ssm["design", :, :] = np.array([[1, 0, 0, 0, 0, 0], [0, 1, 0, 0, 0, 0]])
self.ssm["initial_state", :] = x0
self.ssm["initial_state_cov", :, :] = P0
self.ssm["state_cov", :, :] = acceleration_innovations**2 * np.array(
[
[(delta_t**4) / 4, 0, (delta_t**3) / 2, 0, (delta_t**2) / 2, 0],
[0, (delta_t**4) / 4, 0, (delta_t**3) / 2, 0, (delta_t**2) / 2],
[(delta_t**3) / 2, 0, (delta_t**2), 0, delta_t, 0],
[0, (delta_t**3) / 2, 0, (delta_t**2), 0, delta_t],
[(delta_t**2) / 2, 0, delta_t, 0, 1, 0],
[0, (delta_t**2) / 2, 0, delta_t, 0, 1],
]
)
self.ssm["obs_cov", :, :] = np.eye(2) * 0.5
@property
def param_names(self):
return [
"x0",
"P0",
"acceleration_innovations",
]
@property
def state_names(self):
return ["x", "y", "vx", "vy", "ax", "ay"]
@property
def shock_names(self):
return [
"x_innovations",
"y_innovations",
"vx_innovations",
"vy_innovations",
"ax_innovations",
"ay_innovations",
]
@property
def observed_states(self):
return ["x", "y"]
@property
def param_dims(self):
# There are special standardized names to use here. You can import them from
# pymc_extras.statespace.utils.constants
return {
"x0": (ALL_STATE_DIM,),
"P0": (ALL_STATE_DIM, ALL_STATE_AUX_DIM),
"acceleration_innovations": (1,),
}
@property
def coords(self):
# This function puts coords on all those statespace matrices (x0, P0, c, d, T, Z, R, H, Q)
# and also on the different filter outputs so you don't have to worry about it. You only need to set
# the coords for the dims unique to your model.
coords = make_default_coords(self)
return coords
@property
def param_info(self):
# This needs to return a dictionary where the keys are the parameter names, and the values are a
# dictionary. The value dictionary should have the following keys: "shape", "constraints", and "dims".
info = {
"x0": {
"shape": (self.k_states,),
"constraints": "None",
},
"P0": {
"shape": (self.k_states, self.k_states),
"constraints": "Positive Semi-definite",
},
"acceleration_innovations": {
"shape": (1,),
"constraints": "Positive",
},
}
# Lazy way to add the dims without making any typos
for name in self.param_names:
info[name]["dims"] = self.param_dims[name]
return info
n_ssm = NewtonianSSM(mode="JAX")
Model Requirements Variable Shape Constraints Dimensions ───────────────────────────────────────────────────────────────────────────────────── x0 (6,) None ('state',) P0 (6, 6) Positive Semi-definite ('state', 'state_aux') acceleration_innovations (1,) Positive (1,) These parameters should be assigned priors inside a PyMC model block before calling the build_statespace_graph method.
with pm.Model(coords=n_ssm.coords) as newtonian:
x0 = pm.Deterministic("x0", pt.as_tensor([-49, 16, 0.0, 0.0, 0.0, 0.0]), dims="state")
P0 = pt.eye(6) * 1e-3
P0 = pm.Deterministic("P0", P0, dims=("state", "state_aux"))
acceleration_innovations = pm.Gamma("acceleration_innovations", 0.1, 5, shape=(1,))
n_ssm.build_statespace_graph(
data=fiona_df.select("longitude", "latitude").to_numpy(),
save_kalman_filter_outputs_in_idata=True,
)
newtonian_idata = pm.sample(
nuts_sampler="nutpie", nuts_sampler_kwargs={"backend": "jax", "gradient_backend": "jax"}
)
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampler Progress
Total Chains: 4
Active Chains: 0
Finished Chains: 4
Sampling for now
Estimated Time to Completion: now
| Progress | Draws | Divergences | Step Size | Gradients/Draw |
|---|---|---|---|---|
| 2000 | 0 | 1.38 | 3 | |
| 2000 | 0 | 1.35 | 3 | |
| 2000 | 0 | 1.38 | 3 | |
| 2000 | 0 | 1.38 | 1 |

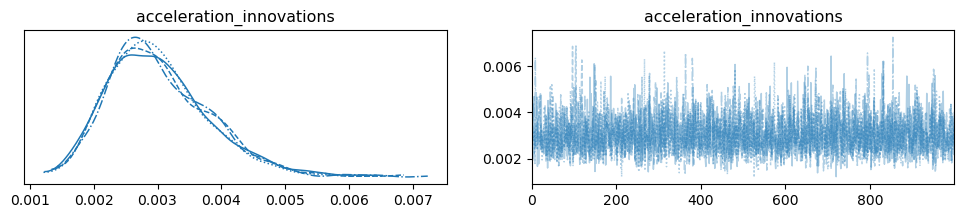

az.summary(newtonian_idata, var_names="acceleration_innovations", kind="stats")
| mean | sd | hdi_3% | hdi_97% | |
|---|---|---|---|---|
| acceleration_innovations[0] | 0.004 | 0.001 | 0.002 | 0.007 |
predicted_covs = newtonian_idata.posterior["predicted_covariance"].mean(("chain", "draw"))
post_mean = newtonian_idata.posterior["predicted_observed_state"].mean(("chain", "draw"))
Not bad for a model with only one parameter. We can see that the forecast gets wonky in the middle where the trajectory of the Hurricane changes directions over short time periods. Again, it is important to keep in mind that what we are plotting are the one-step/period ahead forecast. In our case, our periods are six hours apart. Unfortunately, a 6-hour ahead hurricane forecast is not very practical. Let’s see what we get when we generate a 4-period (24-hour) ahead forecast.
Note
More often than not we build parametric models that are quite flexible in adapting to the data. In such cases, we have multiple parameters that give the model it’s flexibility in fitting the data. In this particular case, we impose a rigid structure on the data by insisting that the data generating process adhere to the laws of Newtonian physics. In doing so, the model is much less flexible with only one parameter that accounts for the unmodeled angular acceleration.
fig = plot_hurricane_path(
data=fiona_df,
posterior_mean=post_mean,
predicted_covariance=predicted_covs,
uncertainty_index=0,
)
fig.show(width=1000, config={"displayModeBar": False})
plot_model_evaluations(
*evaluate_haversine(fiona_df.select("longitude", "latitude").to_numpy(), post_mean.values),
main_title="Newtonian"
).show(width=1000, renderer="svg")
Generate 24-hour forecasts with our Newtonian model#
f_mean, cppc_vcov = generate_period_forecasts(
ssm_model=n_ssm, inference_data=newtonian_idata, data=fiona_df, periods=4
)
Show code cell output
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
The 4-period (24-hour) forecasts exhibit a smaller error compared to the one-step ahead forecast. This result is due to the smoothing effect that occurs when we forecast out longer time periods.
fig = plot_hurricane_path(
data=fiona_df, posterior_mean=f_mean, predicted_covariance=cppc_vcov, uncertainty_index=0
)
fig.show(width=1000, config={"displayModeBar": False})
newtonian_errors, newtonian_cum_error, newtonian_mean_error = evaluate_haversine(
fiona_df.select("longitude", "latitude").to_numpy()[1:], f_mean.values
)
plot_model_evaluations(
newtonian_errors, newtonian_cum_error, newtonian_mean_error, main_title="24-hour Newtonian"
).show(width=1000, renderer="svg")
Adding Deterministic Covariates/Exogenous Variables#
In our dataset we have variables that aren’t a part of the Newtonian system process, but may carry information that we can leverage to better track the path of the hurricane. We have two options when introducing these exogenous variables into our model. We can add them in as time invariant or time-varying variables. In our case, we are going to add exogenous variables as time invariant. Our aim then is to model our observations as:
The max_wind variable measures the maximum sustained surface wind at 10 meter elevations and is a uni-dimensional measure (i.e not measured in terms of longitude and latitude). Therefore, we are going to use the same data to estimate two-parameters \(\beta_{wind_{longitude}}\) and \(\beta_{wind_{latitude}}\). This is less than ideal but demonstrates how to add exogenous variables to a StateSpace model.
The min_pressure variable measures the minumum central pressure. The lower the central pressure, typically, the more intense the hurricane. This variable again is only measured in one dimension, so we will handle that the same way we are handling it for max_wind.
Finally, we will also include the interaction between the maximum sustained surface wind and the minimum central pressure.
In order to put this in matrix form, we are going to add the newly added \(\beta\) parameters to our state vector and we will add the corresponding measured wind_speed, min_pressure, and interaction_wind_pressure data into the design matrix. So our new state vector will be:
and our design matrix will be:
Where \(Z\) is our previously defined design matrix and \(X_{exogenous}\) is the measured wind_speed, minimum_pressure, and interaction_wind_pressure exogenous data.
We also need to make adjustments to our \(T\) state transition matrix and \(R\) selection matrix.
The last 2 columns we added indicates what states our exogenous variables affect, and the last 2 rows indicate that the processes of our exogenous parameters are constant.
The additions to the R matrix imply that the exogenous parameters do not exhibit any process innovations.
class ExogenousSSM(PyMCStateSpace):
def __init__(self, k_exog: int = None, mode: str | None = None):
k_states = 6 + k_exog # number of states (x, y, vx, vy, ax, ay)
k_posdef = 6 # number of shocks (size of the process innovations covariance matrix Q)
k_endog = 2 # number of observed states (we only observe x and y)
self.k_exog = k_exog
mode = mode
super().__init__(k_endog=k_endog, k_states=k_states, k_posdef=k_posdef, mode=mode)
def make_symbolic_graph(self):
# Add exogenous variables to the model
exogenous_data = self.make_and_register_data("exogenous_data", shape=(None, self.k_exog))
beta_exog = self.make_and_register_variable("beta_exog", shape=(self.k_exog,))
n_obs = exogenous_data.shape[0]
delta_t = 6.0 # The amount of time between observations 6 hours in our case
# these variables wil be estimated in our model
x0 = self.make_and_register_variable(
"x0", shape=(6,)
) # initial state vector (x, y, vx, vy, ax, ay)
P0 = self.make_and_register_variable(
"P0", shape=(self.k_states, self.k_states)
) # initial process covariance matrix
acceleration_innovations = self.make_and_register_variable(
"acceleration_innovations", shape=(1,)
)
T = np.array(
[
[1, 0, delta_t, 0, (delta_t**2) / 2, 0],
[0, 1, 0, delta_t, 0, (delta_t**2) / 2],
[0, 0, 1, 0, delta_t, 0],
[0, 0, 0, 1, 0, delta_t],
[0, 0, 0, 0, 1, 0],
[0, 0, 0, 0, 0, 1],
]
)
self.ssm["transition", :, :] = np.vstack(
(
np.hstack((T, np.zeros(shape=(self.k_states - self.k_exog, self.k_exog)))),
np.eye(self.k_states)[-self.k_exog :],
)
)
R = np.array(
[
[1, 0, 0, 0, 0, 0],
[0, 1, 0, 0, 0, 0],
[0, 0, 1, 0, 0, 0],
[0, 0, 0, 1, 0, 0],
[0, 0, 0, 0, 1, 0],
[0, 0, 0, 0, 0, 1],
]
)
self.ssm["selection", :, :] = np.vstack(
(R, np.zeros(shape=(self.k_exog, self.k_states - self.k_exog)))
)
Z = pt.as_tensor([[1.0, 0.0, 0.0, 0.0, 0.0, 0.0], [0.0, 1.0, 0.0, 0.0, 0.0, 0.0]])
exog_reshape = pt.repeat(
exogenous_data, self.k_endog, axis=0
) # We need to reshape the data to fit the proper dimensions. This step duplicates the data
exog_reshape = pt.set_subtensor(
exog_reshape[1::2, :], pt.roll(exog_reshape[1::2, :], 1)
) # We need to reshape the data to fit the proper dimensions. This step mirrors the data
exog_reshape = exog_reshape.reshape((n_obs, self.k_endog, self.k_exog))
self.ssm["design"] = pt.concatenate((pt.tile(Z, (n_obs, 1, 1)), exog_reshape), axis=2)
self.ssm["initial_state", :] = pt.concatenate((x0, beta_exog), axis=0)
self.ssm["initial_state_cov", :, :] = P0
self.ssm["state_cov", :, :] = acceleration_innovations**2 * np.array(
[
[(delta_t**4) / 4, 0, (delta_t**3) / 2, 0, (delta_t**2) / 2, 0],
[0, (delta_t**4) / 4, 0, (delta_t**3) / 2, 0, (delta_t**2) / 2],
[(delta_t**3) / 2, 0, (delta_t**2), 0, delta_t, 0],
[0, (delta_t**3) / 2, 0, (delta_t**2), 0, delta_t],
[(delta_t**2) / 2, 0, delta_t, 0, 1, 0],
[0, (delta_t**2) / 2, 0, delta_t, 0, 1],
]
)
self.ssm["obs_cov", :, :] = np.eye(2) * 0.5
@property
def data_names(self) -> list[str]:
"""
Names of data variables expected by the model.
This does not include the observed data series, which is automatically handled by PyMC. This property only
needs to be implemented for models that expect exogenous data.
"""
return ["exogenous_data"]
@property
def data_info(self):
"""
Information about Data variables that need to be declared in the PyMC model block.
Returns a dictionary of data_name: dictionary of property-name:property description pairs. The return value is
used by the ``_print_data_requirements`` method, to print a message telling users how to define the necessary
data for the model. Each dictionary should have the following key-value pairs:
* key: "shape", value: a tuple of integers
* key: "dims", value: tuple of strings
"""
return {"exogenous_data": {"shape": (None, self.k_exog), "dims": (TIME_DIM, "exog_dims")}}
@property
def param_names(self):
return ["x0", "P0", "acceleration_innovations", "beta_exog"]
@property
def state_names(self):
return [
"x",
"y",
"vx",
"vy",
"ax",
"ay",
"beta_wind_x",
"beta_wind_y",
"beta_pressure_x",
"beta_pressure_y",
"interaction_wind_pressure_x",
"interaction_wind_pressure_y",
]
@property
def shock_names(self):
return [
"x_innovations",
"y_innovations",
"vx_innovations",
"vy_innovations",
"ax_innovations",
"ay_innovations",
]
@property
def observed_states(self):
return ["x", "y"]
@property
def param_dims(self):
# There are special standardized names to use here. You can import them from
# pymc_extras.statespace.utils.constants
return {
"x0": (self.k_states - self.k_exog,),
"P0": (ALL_STATE_DIM, ALL_STATE_AUX_DIM),
"acceleration_innovations": (1,),
"beta_exog": ("exog_dims",),
}
@property
def coords(self):
# This function puts coords on all those statespace matrices (x0, P0, c, d, T, Z, R, H, Q)
# and also on the different filter outputs so you don't have to worry about it. You only need to set
# the coords for the dims unique to your model.
coords = make_default_coords(self)
coords.update(
{
"exog_dims": [
"Wind_Longitude",
"Wind_Latitude",
"Pressure_Longitude",
"Pressure_Latitude",
"Interaction_Wind_Pressure_Longitude",
"Interaction_Wind_Pressure_Latitude",
]
}
)
return coords
@property
def param_info(self):
# This needs to return a dictionary where the keys are the parameter names, and the values are a
# dictionary. The value dictionary should have the following keys: "shape", "constraints", and "dims".
info = {
"x0": {
"shape": (self.k_states - self.k_exog,),
"constraints": "None",
},
"P0": {
"shape": (self.k_states, self.k_states),
"constraints": "Positive Semi-definite",
},
"acceleration_innovations": {
"shape": (1,),
"constraints": "Positive",
},
"beta_exog": {
"shape": (self.k_exog,),
"constraints": "None",
},
}
# Lazy way to add the dims without making any typos
for name in self.param_names:
info[name]["dims"] = self.param_dims[name]
return info
Note that because our variables are uni-dimensional we duplicate and mirror the data to apply each variable in two dimensions. The mirroring occurs in the model definition of the design matrix. This is necessary to ensure that the correct data is associated with the proper state during matrix multiplication. Take a look at how the states are defined above. In order to have a univariate variable apply to both the longitude and latitude positions (our observed states) we must duplicate our exogenous data for each observed stated and mirror the data so that when we are multiplying the exogenous data with the longitudinal states the data is non-zero on the longitudinal state but is zero for the latitudinal states and vice versa.
X_exog = (
fiona_df.with_columns(
pl.lit(0.0).alias("zeros"),
((pl.col("max_wind") - pl.col("max_wind").mean()) / pl.col("max_wind").std()).alias(
"max_wind"
),
(
(pl.col("min_pressure") - pl.col("min_pressure").mean()) / pl.col("min_pressure").std()
).alias("min_pressure"),
)
.with_columns((pl.col("max_wind") * pl.col("min_pressure")).alias("interaction_wind_pressure"))
.select(
pl.col("max_wind").cast(pl.Float64).alias("max_wind_x"),
pl.col("zeros").cast(pl.Float64).alias("max_wind_y"),
pl.col("min_pressure").cast(pl.Float64).alias("min_pressure_x"),
pl.col("zeros").cast(pl.Float64).alias("min_pressure_y"),
pl.col("interaction_wind_pressure").cast(pl.Float64).alias("interaction_wind_pressure_x"),
pl.col("zeros").cast(pl.Float64).alias("interaction_wind_pressure_y"),
)
)
exog_ssm = ExogenousSSM(k_exog=X_exog.shape[1], mode="JAX")
Model Requirements Variable Shape Constraints Dimensions ──────────────────────────────────────────────────────────────────────────────────────── x0 (6,) None (6,) P0 (12, 12) Positive Semi-definite ('state', 'state_aux') acceleration_innovations (1,) Positive (1,) beta_exog (6,) None ('exog_dims',) exogenous_data (None, 6) pm.Data ('time', 'exog_dims') These parameters should be assigned priors inside a PyMC model block before calling the build_statespace_graph method.
with pm.Model(coords=exog_ssm.coords) as exogenous:
exogenous_data = pm.Data("exogenous_data", X_exog.to_numpy(), dims=["time", "exog_dims"])
beta_exog = pm.Normal("beta_exog", 0, 1, dims=["exog_dims"])
x0 = pm.Deterministic("x0", pt.as_tensor([-49, 16, 0.0, 0.0, 0.0, 0.0]))
P0 = pt.eye(12) * 1e-3
P0 = pm.Deterministic("P0", P0, dims=("state", "state_aux"))
acceleration_innovations = pm.Gamma("acceleration_innovations", 0.1, 5, shape=(1,))
exog_ssm.build_statespace_graph(
data=fiona_df.select("longitude", "latitude").to_numpy(),
save_kalman_filter_outputs_in_idata=True,
)
exogenous_idata = pm.sample(
nuts_sampler="nutpie", nuts_sampler_kwargs={"backend": "jax", "gradient_backend": "jax"}
)
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampler Progress
Total Chains: 4
Active Chains: 0
Finished Chains: 4
Sampling for a minute
Estimated Time to Completion: now
| Progress | Draws | Divergences | Step Size | Gradients/Draw |
|---|---|---|---|---|
| 2000 | 0 | 0.62 | 7 | |
| 2000 | 0 | 0.61 | 7 | |
| 2000 | 0 | 0.62 | 7 | |
| 2000 | 0 | 0.59 | 7 |
Typically, the surface wind speed and the central pressure of a hurricane carry little information on the path the hurricane will take. The path of a hurricane is, generally, influenced by surrounding atmospheric conditions like pressure gradients. Knowing this, it makes sense to see that many of our beta parameters are close to zero, indicating little to no influence on the hurricanes’ path.

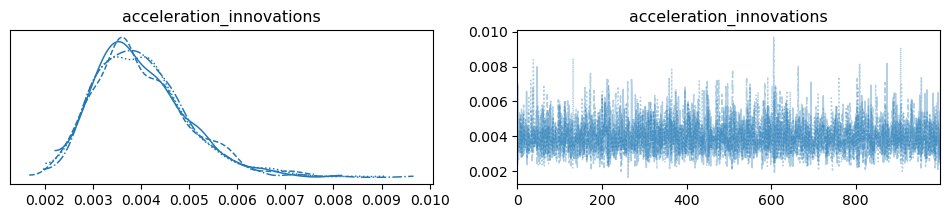

az.plot_trace(exogenous_idata, var_names="acceleration_innovations");

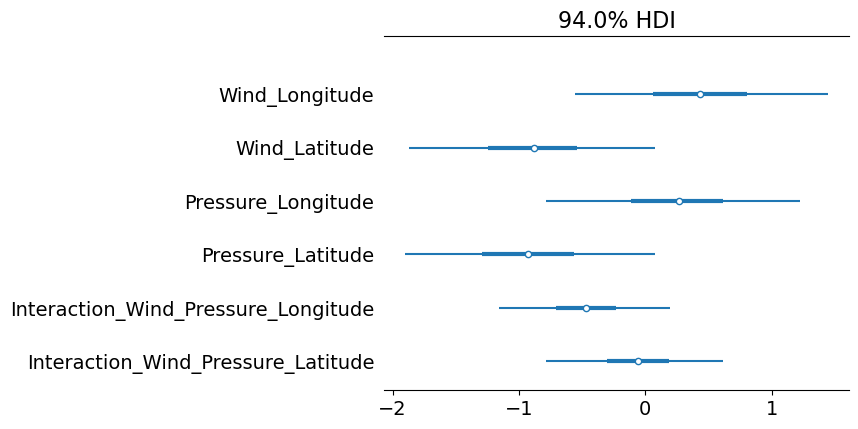

az.plot_forest(
exogenous_idata, var_names=["beta_exog"], combined=True, labeller=azl.NoVarLabeller()
);
Make in-sample forecasts with new exogenous model#
predicted_covs = exogenous_idata.posterior["predicted_covariance"].mean(("chain", "draw"))
post_mean = exogenous_idata.posterior["predicted_observed_state"].mean(("chain", "draw"))
Our one-period ahead forecasts seem to be slightly worse than our Newtonian model. You will notice that at the end of the forecast we see that our trajectory is erroneously more north rather than north-east. Since the exogenous variables we added to the model don’t carry additional information with respect to the hurricane’s trajectory, this results are expected.
fig = plot_hurricane_path(
data=fiona_df,
posterior_mean=post_mean,
predicted_covariance=predicted_covs,
uncertainty_index=0,
)
fig.show(width=1000, config={"displayModeBar": False})
plot_model_evaluations(
*evaluate_haversine(fiona_df.select("longitude", "latitude").to_numpy(), post_mean.values),
main_title="Exogenous"
).show(width=1000, renderer="svg")
Generate 24-hour forecasts with our Exogenous SSM#
We need to be careful here because we must ensure that we don’t allow our model to peak into the future by supplying it with exogenous data that we would not have seen at the time of generating our forecasts. To ensure good and fair forecasts, we will be carrying forward the last exogenous data points from our prior period.
# Carry forward last observation
X_exog_scenario = X_exog.gather_every(n=4, offset=4).select(pl.all().repeat_by(4).flatten())
# our last i will equal 60 so we need to pad our exogenous data to len 64
X_exog_padded = pl.concat(
(
X_exog_scenario,
X_exog_scenario.tail(1).select(
pl.all().repeat_by(4).flatten()
), # duplicate last entry 4 times
)
)
f_mean, cppc_vcov = generate_period_forecasts(
ssm_model=exog_ssm,
inference_data=exogenous_idata,
data=fiona_df,
periods=4,
exogenous_data_name="exogenous_data",
padded_exogenous_data=X_exog_padded,
)
Show code cell output
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
Similarly, our 24-hour forecasts are also slightly worse off compared to those produced by the simple model.
fig = plot_hurricane_path(
data=fiona_df, posterior_mean=f_mean, predicted_covariance=cppc_vcov, uncertainty_index=0
)
fig.show(width=1000, config={"displayModeBar": False})
exog_errors, exog_cum_error, exog_mean_error = evaluate_haversine(
fiona_df.select("longitude", "latitude").to_numpy()[1:], f_mean.values
)
plot_model_evaluations(
exog_errors, exog_cum_error, exog_mean_error, main_title="24-hour Exogenous"
).show(width=1000, renderer="svg")
Add B-Splines#
In the previous section, we tried adding an interaction term between the maximum sustained surface wind speed and the minumum central pressure. However, our estimated parameters were not too far off from zero. In this section we are going to attempt to model the non-linear complexities of the path, particularly in the mid-section, using cubic B-splines.
We first need to define what variables we are going to model as a smooth function. In our case, we are going to model the longitude values as a smooth function of the latitude values and vice versa.
To keep things simple, we are going to define a constant number of knots that are equal in both variables (same number of knots for both longitude and latitude) and we are going to place the knots using a quantile function over the variable space. You can see the knots plotted out below for each variable.
num_knots = 15
longitude_knot_list = np.quantile(fiona_df["longitude"], np.linspace(0, 1, num_knots))
latitude_knot_list = np.quantile(fiona_df["latitude"], np.linspace(0, 1, num_knots))
fig = go.Figure()
fig.add_traces(
[
go.Scatter(
x=fiona_df["longitude"],
y=fiona_df["latitude"],
name="Actuals",
mode="lines+markers",
line=dict(color="black"),
hovertemplate=[
f"""<b>Period:</b> {row['discrete_time']}<br><b>Longitude:</b> {row['longitude']:.1f}<br><b>Latitude:</b> {row['latitude']:.1f}<extra></extra>
"""
for row in fiona_df.iter_rows(named=True)
],
)
]
)
for i, knot in enumerate(longitude_knot_list):
if i == len(longitude_knot_list) - 1:
showlegend = True
else:
showlegend = False
fig.add_shape(
type="line",
x0=knot,
x1=knot,
y0=0,
y1=100,
line_dash="dash",
line_color="rgba(0, 0, 255, 0.2)",
showlegend=showlegend,
legendgroup="longitude_group",
name="Longitude Knots",
legendrank=1,
)
for i, knot in enumerate(latitude_knot_list):
if i == len(latitude_knot_list) - 1:
showlegend = True
else:
showlegend = False
fig.add_shape(
type="line",
x0=-75,
x1=-45,
y0=knot,
y1=knot,
line_dash="dash",
line_color="rgba(255, 0, 0, 0.2)",
showlegend=showlegend,
legendgroup="latitude_group",
name="Latitude Knots",
legendrank=2,
)
fig.update_layout(
xaxis=dict(title="Longitude", ticksuffix="°", range=(-72, -47.5)),
yaxis=dict(title="Latitude", ticksuffix="°", range=(14, 65)),
title=dict(text="B-Spline Knot Locations"),
)
fig.show(width=1000, renderer="svg")
Next, we need to create the basis functions over the defined variable space knot locations for each variable.
B_longitude = dmatrix(
"bs(longitude, knots=longitude_knots, degree=3, include_intercept=True) - 1",
{"longitude": fiona_df["longitude"], "longitude_knots": longitude_knot_list[1:-1]},
)
B_latitude = dmatrix(
"bs(latitude, knots=latitude_knots, degree=3, include_intercept=True) - 1",
{"latitude": fiona_df["latitude"], "latitude_knots": latitude_knot_list[1:-1]},
)
exog_data = np.column_stack((np.asarray(B_longitude, order="F"), np.asarray(B_latitude, order="F")))
Our new models’ structure is going to be similar to our last model that had exogenous variables. However, in this case our data are going to be the basis functions we created earlier. These will be inserted into our design matrix (\(Z\)) and the beta parameters corresponding to each spline will be added to our state vector (\(x_{t}\)). Again, these parameters will be constant (non-time varying). We will also have to adjust our transition matrix (\(T\)) and selection matrix (\(R\)) similar to how we did previously. We will now have:
our design matrix will be:
Where \(Z\) is our previously defined design matrix and \(X_{exogenous}\) are the basis functions we defined earlier.
Our transition matrix will be
Where \(T\) is the transition matrix defined for the Newtonian kinematics (the top-left 6x6 block in our previous model) and
and the 0 in the matrix above is a matrix of 0s of shape (number of spline parameters by number of spline parameters)
Finally, we have
Where R is the selection matrix over our endogenous states (identity matrix of shape (number of states)) and again the 0 in the matrix is a matrix of 0s with shape (number of spline parameters by number of states)
class SplineSSM(PyMCStateSpace):
def __init__(self, k_exog: int = None, mode: str | None = None):
k_states = 6 + k_exog # number of states (x, y, vx, vy, ax, ay)
k_posdef = 6 # number of shocks (size of the process innovations covariance matrix Q)
k_endog = 2 # number of observed states (we only observe x and y)
self.k_exog = k_exog
mode = mode
super().__init__(k_endog=k_endog, k_states=k_states, k_posdef=k_posdef, mode=mode)
def make_symbolic_graph(self):
# Add exogenous variables to the model
exogenous_data = self.make_and_register_data("exogenous_data", shape=(None, self.k_exog))
beta_exog = self.make_and_register_variable("beta_exog", shape=(self.k_exog,))
n_obs = exogenous_data.shape[0]
delta_t = 6.0 # The amount of time between observations 6 hours in our case
# these variables wil be estimated in our model
x0 = self.make_and_register_variable(
"x0", shape=(6,)
) # initial state vector (x, y, vx, vy, ax, ay)
P0 = self.make_and_register_variable(
"P0", shape=(self.k_states, self.k_states)
) # initial process covariance matrix
acceleration_innovations = self.make_and_register_variable(
"acceleration_innovations", shape=(1,)
)
T = np.array(
[
[1, 0, delta_t, 0, (delta_t**2) / 2, 0],
[0, 1, 0, delta_t, 0, (delta_t**2) / 2],
[0, 0, 1, 0, delta_t, 0],
[0, 0, 0, 1, 0, delta_t],
[0, 0, 0, 0, 1, 0],
[0, 0, 0, 0, 0, 1],
]
)
self.ssm["transition", :, :] = np.vstack(
(
np.hstack((T, np.zeros(shape=(self.k_states - self.k_exog, self.k_exog)))),
np.eye(self.k_states)[-self.k_exog :],
)
)
R = np.array(
[
[1, 0, 0, 0, 0, 0],
[0, 1, 0, 0, 0, 0],
[0, 0, 1, 0, 0, 0],
[0, 0, 0, 1, 0, 0],
[0, 0, 0, 0, 1, 0],
[0, 0, 0, 0, 0, 1],
]
)
self.ssm["selection", :, :] = np.vstack(
(R, np.zeros(shape=(self.k_exog, self.k_states - self.k_exog)))
)
Z = pt.as_tensor([[1.0, 0.0, 0.0, 0.0, 0.0, 0.0], [0.0, 1.0, 0.0, 0.0, 0.0, 0.0]])
exog_reshape = pt.horizontal_stack(
pt.concatenate(
(
exogenous_data[:, : int(self.k_exog / 2)],
pt.zeros((n_obs, int(self.k_exog / 2))),
),
axis=1,
),
pt.concatenate(
(
pt.zeros((n_obs, int(self.k_exog / 2))),
exogenous_data[:, int(self.k_exog / 2) :],
),
axis=1,
),
).reshape((n_obs, self.k_endog, self.k_exog))
self.ssm["design"] = pt.concatenate((pt.tile(Z, (n_obs, 1, 1)), exog_reshape), axis=2)
self.ssm["initial_state", :] = pt.concatenate((x0, beta_exog), axis=0)
self.ssm["initial_state_cov", :, :] = P0
self.ssm["state_cov", :, :] = acceleration_innovations**2 * np.array(
[
[(delta_t**4) / 4, 0, (delta_t**3) / 2, 0, (delta_t**2) / 2, 0],
[0, (delta_t**4) / 4, 0, (delta_t**3) / 2, 0, (delta_t**2) / 2],
[(delta_t**3) / 2, 0, (delta_t**2), 0, delta_t, 0],
[0, (delta_t**3) / 2, 0, (delta_t**2), 0, delta_t],
[(delta_t**2) / 2, 0, delta_t, 0, 1, 0],
[0, (delta_t**2) / 2, 0, delta_t, 0, 1],
]
)
self.ssm["obs_cov", :, :] = np.eye(2) * 0.5
@property
def data_names(self) -> list[str]:
"""
Names of data variables expected by the model.
This does not include the observed data series, which is automatically handled by PyMC. This property only
needs to be implemented for models that expect exogenous data.
"""
return ["exogenous_data"]
@property
def data_info(self):
"""
Information about Data variables that need to be declared in the PyMC model block.
Returns a dictionary of data_name: dictionary of property-name:property description pairs. The return value is
used by the ``_print_data_requirements`` method, to print a message telling users how to define the necessary
data for the model. Each dictionary should have the following key-value pairs:
* key: "shape", value: a tuple of integers
* key: "dims", value: tuple of strings
"""
return {"exogenous_data": {"shape": (None, self.k_exog), "dims": (TIME_DIM, "exog_dims")}}
@property
def param_names(self):
return ["x0", "P0", "acceleration_innovations", "beta_exog"]
@property
def state_names(self):
return (
[
"x",
"y",
"vx",
"vy",
"ax",
"ay",
]
+ [f"longitude_spline_{i + 1}" for i in range(B_longitude.shape[1])]
+ [f"latitude_spline_{i + 1}" for i in range(B_latitude.shape[1])]
)
@property
def shock_names(self):
return [
"x_innovations",
"y_innovations",
"vx_innovations",
"vy_innovations",
"ax_innovations",
"ay_innovations",
]
@property
def observed_states(self):
return ["x", "y"]
@property
def param_dims(self):
# There are special standardized names to use here. You can import them from
# pymc_extras.statespace.utils.constants
return {
"x0": (self.k_states - self.k_exog,),
"P0": (ALL_STATE_DIM, ALL_STATE_AUX_DIM),
"acceleration_innovations": (1,),
"beta_exog": ("exog_dims",),
}
@property
def coords(self):
# This function puts coords on all those statespace matrices (x0, P0, c, d, T, Z, R, H, Q)
# and also on the different filter outputs so you don't have to worry about it. You only need to set
# the coords for the dims unique to your model.
coords = make_default_coords(self)
coords.update(
{
"exog_dims": [f"longitude_spline_{i + 1}" for i in range(B_longitude.shape[1])]
+ [f"latitude_spline_{i + 1}" for i in range(B_latitude.shape[1])]
}
)
return coords
@property
def param_info(self):
# This needs to return a dictionary where the keys are the parameter names, and the values are a
# dictionary. The value dictionary should have the following keys: "shape", "constraints", and "dims".
info = {
"x0": {
"shape": (self.k_states - self.k_exog,),
"constraints": "None",
},
"P0": {
"shape": (self.k_states, self.k_states),
"constraints": "Positive Semi-definite",
},
"acceleration_innovations": {
"shape": (1,),
"constraints": "Positive",
},
"beta_exog": {
"shape": (self.k_exog,),
"constraints": "None",
},
}
# Lazy way to add the dims without making any typos
for name in self.param_names:
info[name]["dims"] = self.param_dims[name]
return info
spline_ssm = SplineSSM(k_exog=exog_data.shape[1], mode="JAX")
Model Requirements Variable Shape Constraints Dimensions ───────────────────────────────────────────────────────────────────────────────────────── x0 (6,) None (6,) P0 (40, 40) Positive Semi-definite ('state', 'state_aux') acceleration_innovations (1,) Positive (1,) beta_exog (34,) None ('exog_dims',) exogenous_data (None, 34) pm.Data ('time', 'exog_dims') These parameters should be assigned priors inside a PyMC model block before calling the build_statespace_graph method.
with pm.Model(coords=spline_ssm.coords) as spline_model:
exogenous_data = pm.Data("exogenous_data", exog_data, dims=["time", "exog_dims"])
beta_exog = pm.Normal("beta_exog", 0, 2, dims=["exog_dims"])
x0 = pm.Deterministic("x0", pt.as_tensor([-49, 16, 0.0, 0.0, 0.0, 0.0]))
P0 = pt.eye(40) * 1e-3
P0 = pm.Deterministic("P0", P0, dims=("state", "state_aux"))
acceleration_innovations = pm.Gamma("acceleration_innovations", 0.1, 5, shape=(1,))
spline_ssm.build_statespace_graph(
data=fiona_df.select("longitude", "latitude").to_numpy(),
save_kalman_filter_outputs_in_idata=True,
)
spline_idata = pm.sample(
nuts_sampler="nutpie", nuts_sampler_kwargs={"backend": "jax", "gradient_backend": "jax"}
)
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampler Progress
Total Chains: 4
Active Chains: 4
Finished Chains: 0
Sampling for a minute
Estimated Time to Completion: 2 minutes
| Progress | Draws | Divergences | Step Size | Gradients/Draw |
|---|---|---|---|---|
| 437 | 0 | 0.62 | 7 | |
| 425 | 0 | 0.53 | 7 | |
| 435 | 0 | 0.54 | 15 | |
| 434 | 0 | 0.58 | 7 |
Most of our spline parameters are around zero, with a handful of exceptions. Let’s take a look at how these effect our forecasts.
az.plot_trace(spline_idata, var_names="acceleration_innovations");

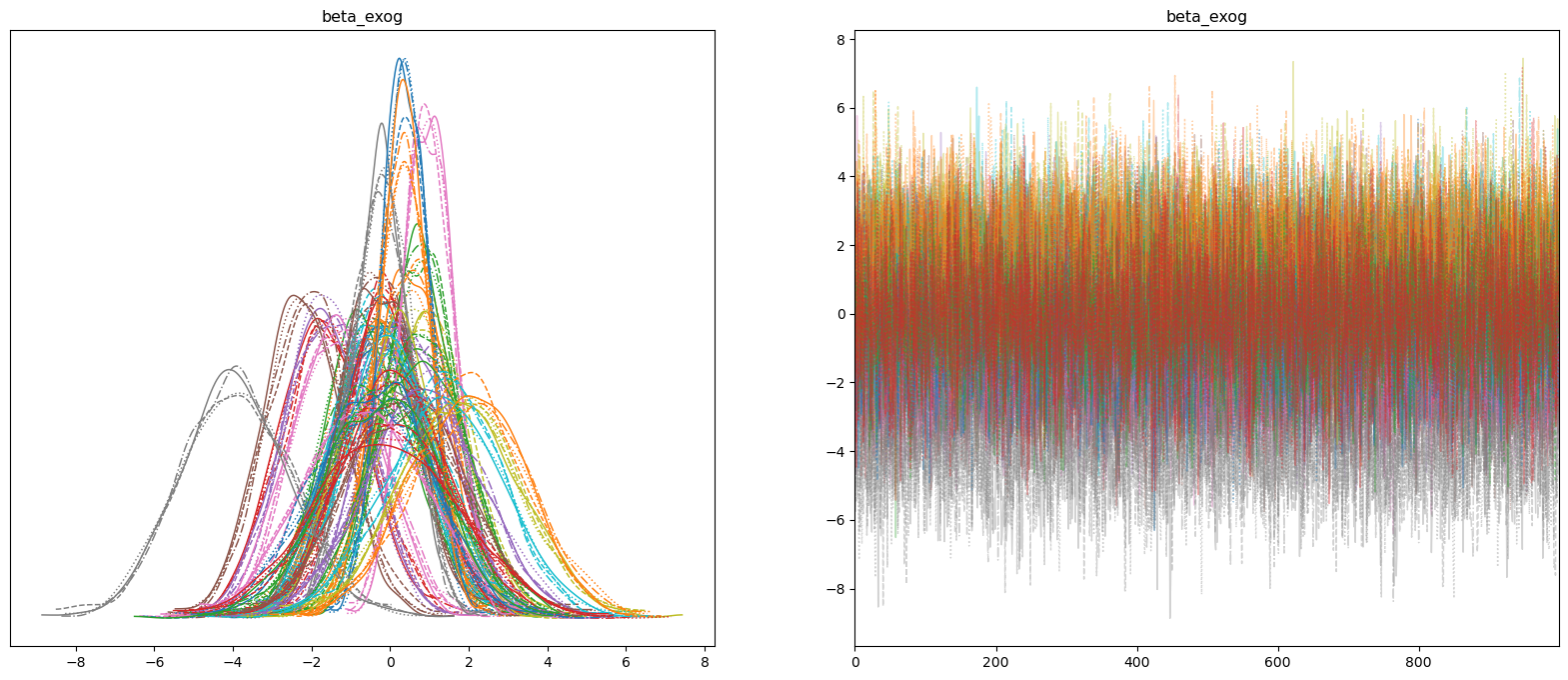

az.plot_trace(spline_idata, var_names=["beta_exog"], compact=True, figsize=(20, 8));
Make in-sample forecasts with new spline model#
Our one-period ahead forecasts, look better than the ones we generated from the Exogenous covariates model, but worse than the original model that purely follows Newtonian kinematics.
predicted_covs = spline_idata.posterior["predicted_covariance"].mean(("chain", "draw"))
post_mean = spline_idata.posterior["predicted_observed_state"].mean(("chain", "draw"))
fig = plot_hurricane_path(
data=fiona_df,
posterior_mean=post_mean,
predicted_covariance=predicted_covs,
uncertainty_index=0,
)
fig.show(width=1000, config={"displayModeBar": False})
plot_model_evaluations(
*evaluate_haversine(fiona_df.select("longitude", "latitude").to_numpy(), post_mean.values),
main_title="B-Spline"
).show(width=1000, renderer="svg")
Our 24-hour (4-period) forecasts, look pretty good. So far, this follows the true trajectory during the mid-section the best.
# our last i will equal 60 so we need to pad our exogenous data to len 64
exog_data_padded = np.concatenate(
(exog_data, np.tile(exog_data[60], (3, 1))), axis=0 # duplicate last entry 3 times
)
f_mean, cppc_vcov = generate_period_forecasts(
ssm_model=spline_ssm,
inference_data=spline_idata,
data=fiona_df,
periods=4,
exogenous_data_name="exogenous_data",
padded_exogenous_data=exog_data_padded,
)
Show code cell output
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
/opt/miniconda3/envs/pymc_examples_dev/lib/python3.13/site-packages/pymc_extras/statespace/utils/data_tools.py:74: UserWarning:
No time index found on the supplied data. A simple range index will be automatically generated.
Sampling: [forecast_combined]
fig = plot_hurricane_path(
data=fiona_df, posterior_mean=f_mean, predicted_covariance=cppc_vcov, uncertainty_index=0
)
fig.show(width=1000, config={"displayModeBar": False})
spline_errors, spline_cum_error, spline_mean_error = evaluate_haversine(
fiona_df.select("longitude", "latitude").to_numpy()[1:], f_mean.values
)
plot_model_evaluations(
spline_errors, spline_cum_error, spline_mean_error, main_title="24-hour B-Spline"
).show(width=1000, renderer="svg")
Closing Remarks#
In this case study we looked at how we can track a hurricane in two-dimensional space using a state space representation of Newtonian kinematics. We proceeded to expand on the pure Newtonian model and added exogenous variables that may hold information pertintent to the Hurricane’s track. We then expanded our model by modeling our variables as smooth functions using cubic B-splines.
Throughout, the case study we have been evaluating our 24-hour forecasts and our overall mean error is smallest with our first Newtonian model. Below you will find the errors from all three models plotting against one another. It seems that (as expected) the exogenous information we included in the exogenous model was not informative with respect to the hurricances’ trajectory. However, it is worth noting that in the period (around 40 through 56) where the hurricane manuevers we obtain less spikes in error in that section with our cubic B-spline model. This implies that the model could benefit from some non-linear specification to handle the angular acceleration. Hopefully, someday the StateSpace module in pymc-extras may support non-linear state space specifications with either the Extended Kalman Filter or with the Unscented Kalman Filter. Until then you can learn more about how to build your own custom state space models with the StateSpace module on the pymc-extras official GitHub repository.
fig = go.Figure()
fig.add_traces(
[
go.Scatter(
x=np.arange(len(newtonian_errors)) + 1,
y=newtonian_errors,
mode="markers+lines",
name="Newtonian Model Errors",
hovertemplate="<b>Period</b>: %{x}<br><b>Miles Away</b>: %{y}",
),
go.Scatter(
x=np.arange(len(exog_errors)) + 1,
y=exog_errors,
mode="markers+lines",
name="Exogenous Model Errors",
hovertemplate="<b>Period</b>: %{x}<br><b>Miles Away</b>: %{y}",
),
go.Scatter(
x=np.arange(len(spline_errors)) + 1,
y=spline_errors,
mode="markers+lines",
name="B-Spline Model Errors",
hovertemplate="<b>Period</b>: %{x}<br><b>Miles Away</b>: %{y}",
),
]
)
fig.update_layout(
title=f"24-hour Forecast Model Comparisons",
xaxis=dict(title="Time Period"),
yaxis=dict(title="Miles Away from Actual"),
width=1000,
)
fig.show(renderer="svg")
Acknowledgements#
Chris Fonnesbeck who reviewed and provided valueable feedback that improved the text
Jesse Grabowski reviewed and provided valueable feedback that improved the text and content, and suggested additional content that improve the overall quality of the work.
References#
Alex Becker. Kalman Filter from the Ground Up. Alex Becker, 2023.
Watermark#
%load_ext watermark
%watermark -n -u -v -iv -w -p xarray
Last updated: Mon Jun 16 2025
Python implementation: CPython
Python version : 3.13.2
IPython version : 9.0.2
xarray: 2025.3.1
pymc_extras: 0.3.0
xarray : 2025.3.1
pymc : 5.21.1
polars : 1.26.0
arviz : 0.21.0
plotly : 6.1.2
patsy : 1.0.1
pytensor : 2.28.3
numpy : 2.1.3
re : 2.2.1
Watermark: 2.5.0
